Model No.︰super x no.8008
Brand Name︰CEMEDINE
Country of Origin︰Japan
Unit Price︰US $ 17.5 / pc
Minimum Order︰1 pc

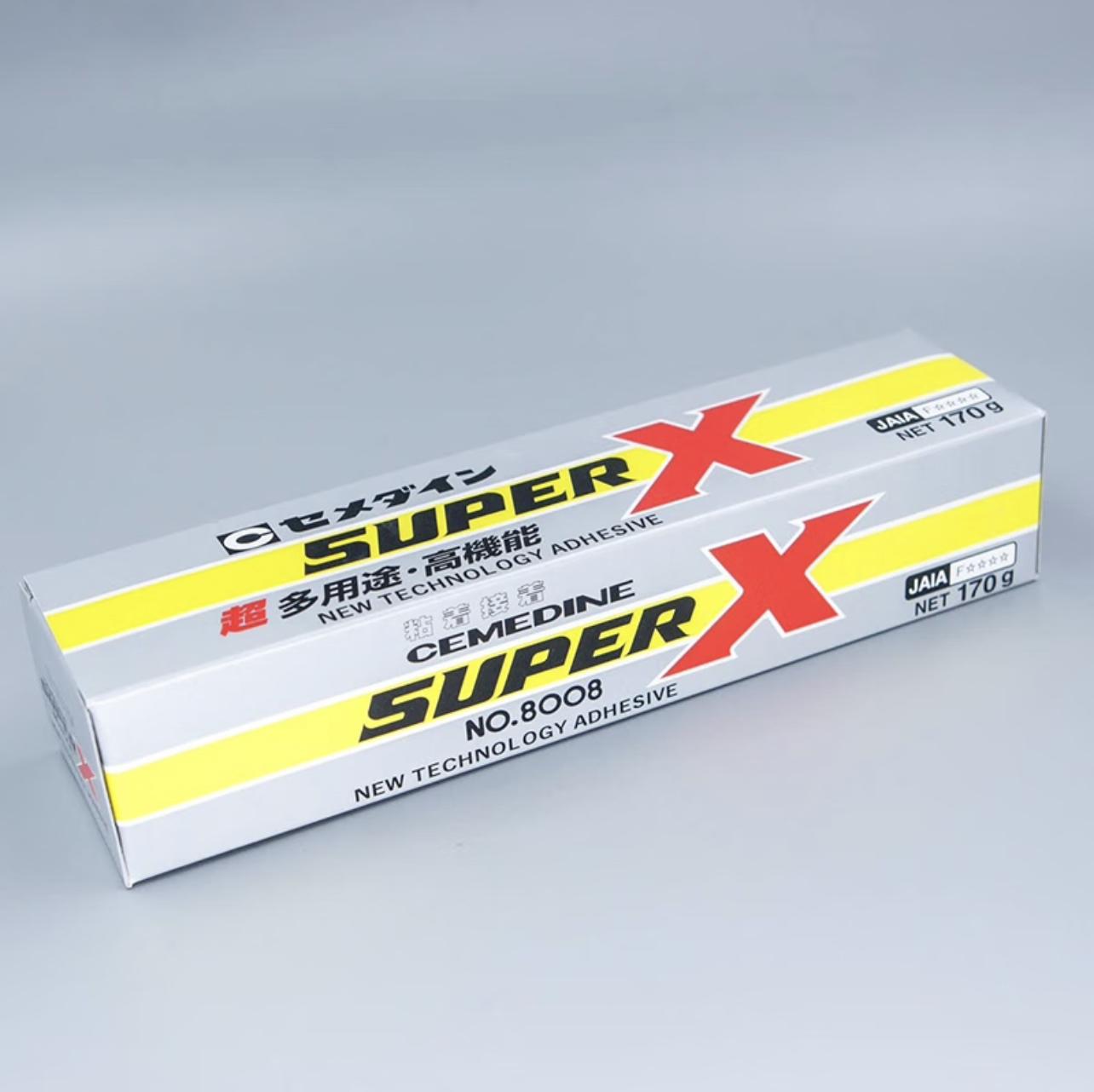

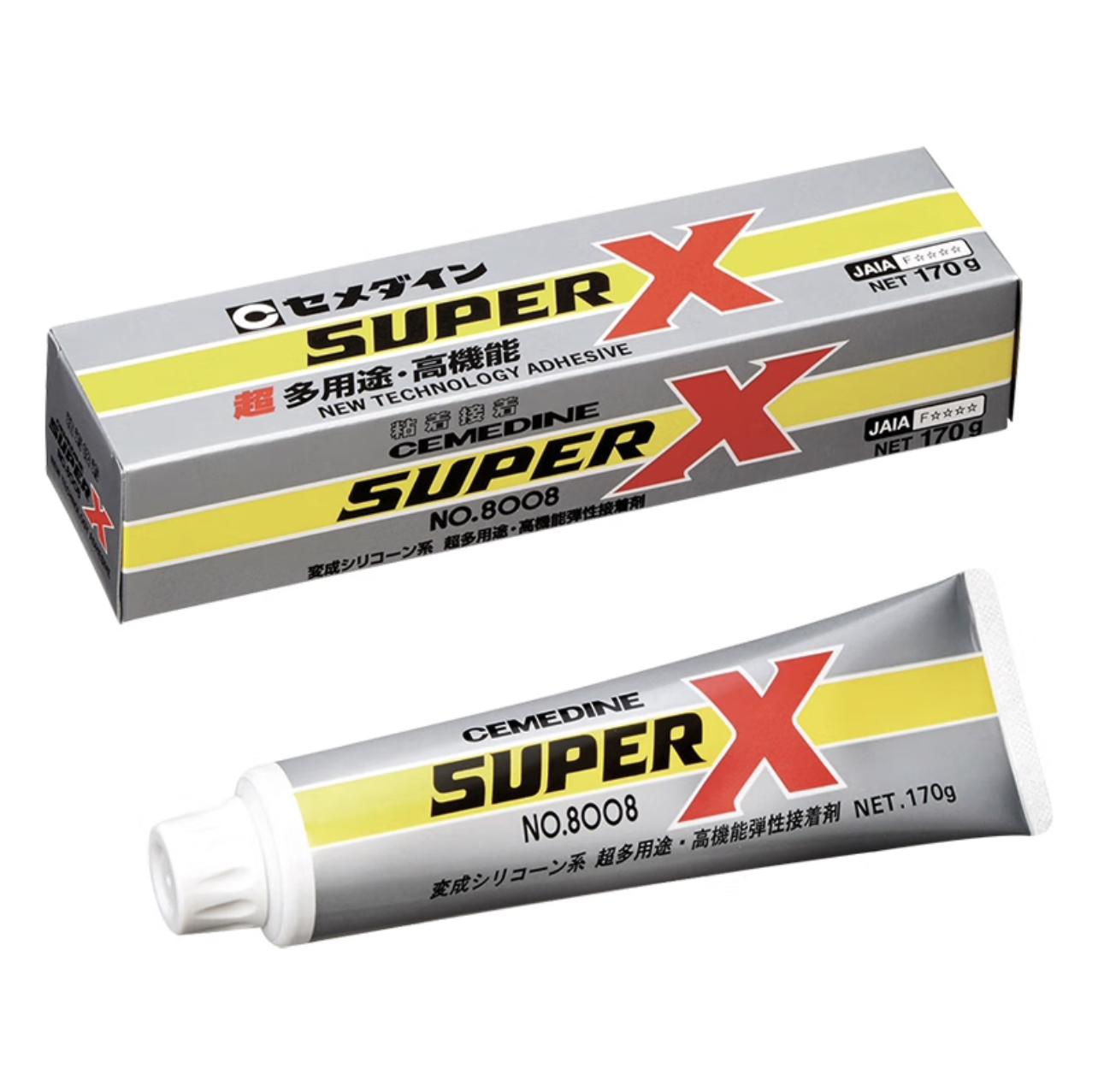

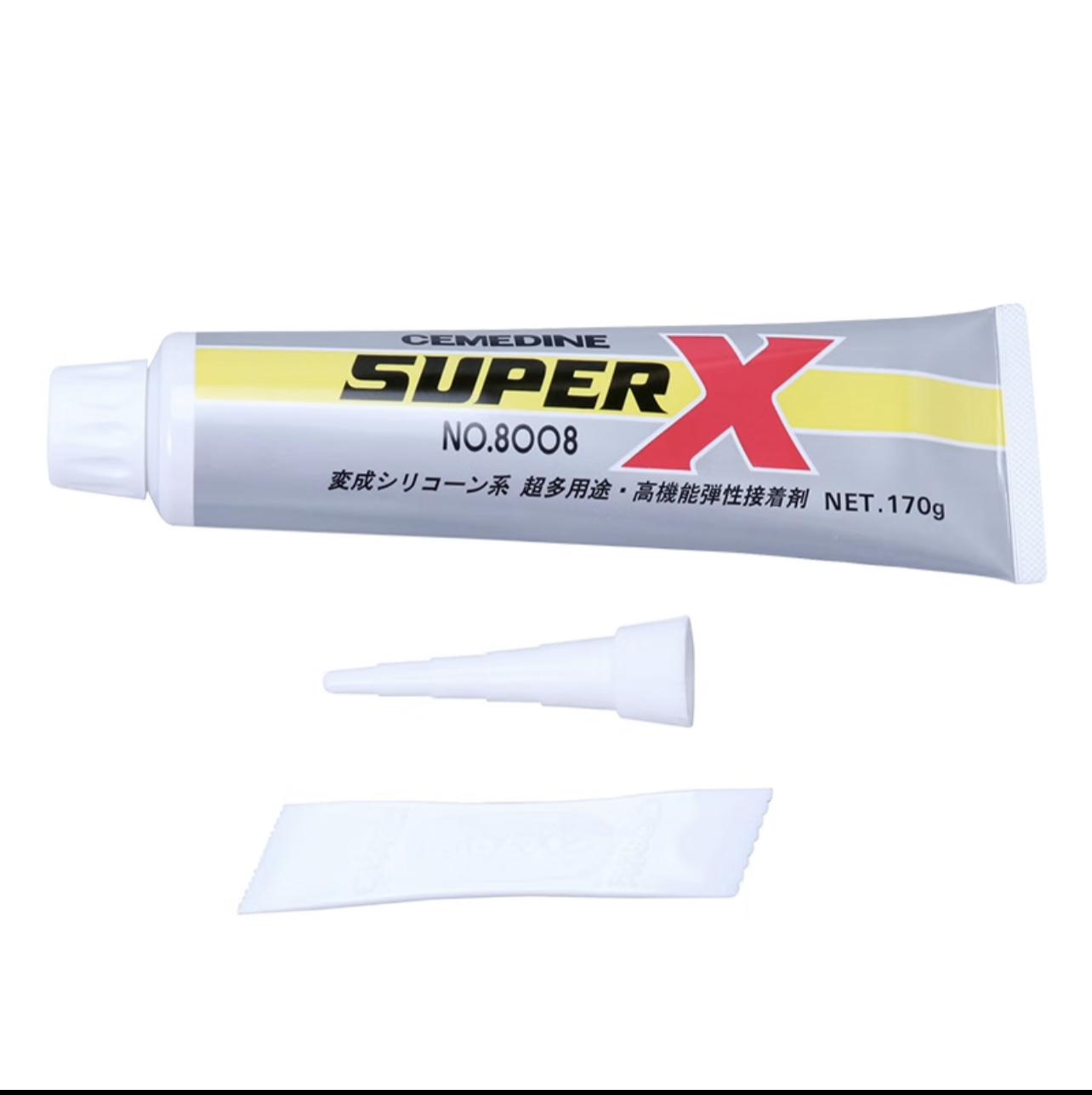

Super-X No.8008
Cemedine Super-X is an epoch-making one-part quick curing adhesive having three significant features which are said to be ideal properties of the adhesives; "pressure-sensitive adhesion", "elastic adhesion" and "solventless adhesion".
Features:
1. Pressure-sensitive adhesion | Curing reaction is caused by moisture absorbed from the air. Pressure-sensitive range is reached in this curing process about 10 min. after application. If adherends are put together during this time, they bound instantaneously as in the case of rubber contact adhesive, eliminating the need for temporary fixation. |
2. One-part solventless agent providing quick curing at normal temperature | Easy-to-use, safe, and clean adhesive featuring one-part solventless agent capable of quick curing at normal temperature is provided. |
3. Adhesive property over an extensive range | Super-X products allow for adhesion of various types of plastics, rubbers and ceramics over an extensive range, moreover different types of metals. These products provides excellent adhesion over a very extensive range of materials, eliminating the need for selecting a particular adhesive for each type of the different materials, as in the case of conventional agents. |
4. Durability | The Super-X as elastic adhesives do not peel off. Once materials are adhered, the Super-X provides durability in the range from low temperature (-60°C) to high temperature (120°C). Because of the rubber state of the hard film, the Super-X follows the changes of adherents such as expansion and shrinkage sufficiently. |
Application:
• Adhesion required to have initial adhesive strength | • Adhesion of different types of materials having different thermal expansion coefficients |
• Adhesion required to have durability due to repeated heating, cooling and vibration | • Electrical contact failure countermeasure product |
Product name | Super X No.8008 (RoHS) | Super X No.8008 black (RoHS) | Super X No.8008 clear (RoHS) | Super X No.8008 Lblack (RoHS) | Super X No.8008 LLblack (RoHS) | |
Main component | Special polymer | Special polymer | Special polymer | Special polymer | Special polymer | |
Appearance | White paste | Black paste | Light yellow | Black paste | Black paste | |
Viscosity (Pa・s/23°C) | 90 | 90 | 65 | 24 | 14 | |
Specific gravity (g/cm3) | 1.26 | 1.26 | 1.07 | 1.24 | 1.21 | |
Tack free time | 11 | 11 | 8 | 11 | 11 | |
Tensile shear adhesive strength (N/mm2) | 3.7 | 3.7 | 3.4 | 3.2 | 2.9 | |
T type peeling adhesive strength (N/mm) | 2.5 | 2.5 | 1.7 | 2.4 | 1.8 | |
Curing | Hardness (Shore A) | 48 | 48 | 49 | 39 | 3.4 |
Glass transfer point (°C) | -63 | -63 | -64 | -68 | -61 | |
Breaking strength (N/ mm2) | 1.8 | 1.8 | 1.6 | 0.9 | 0.7 | |
Breaking extension (%) | 220 | 220 | 150 | 300 | 275 | |
Linear expansion coefficient | 2.1×10-4 | 2.1×10-4 | 1.8×10-4 | 2.4×10-4 | 3.6×10-4 | |
Electric | Volume resistivity (Ω・cm) | 1.1×1012 | 4.7×1011 | 1.3×1012 | 1.2×1012 | 1.0×1012 |
Dielectric constant (100Hz) | 6.15 | 7.07 | 3.89 | 6.99 | 6.56 | |
Dielectric loss tangent (100Hz) | 0.22 | 0.34 | 0.11 | 0.24 | 0.25 | |
Formaldehyde grade | ||||||
Capacity standards | 170g 333ml | 170g 333ml | 333ml | 170g 333ml | 333ml |
Price Terms︰ fob Hongkong, fob Shenzhen
Payment Terms︰ TT
